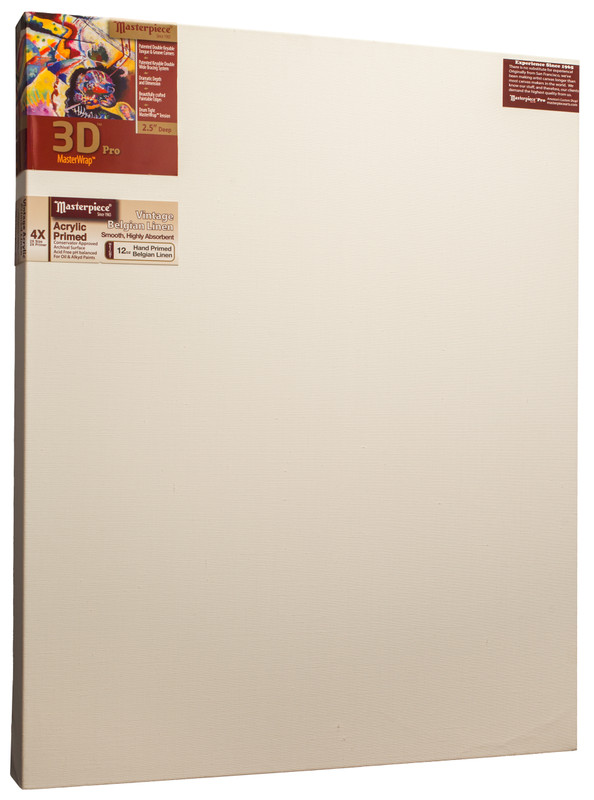

22x31 3D Pro Vintage L22U Canvas 2-1/2" #DU-2231

True Dynamic Root-2 Proportion - 22x31 Size

This 22x31 is one of our Dynamic Root-2 Rectangle Root-2 Rectangle series.

The Dynamic Root-2 rectangle is an interesting proportion based on organizing your spatial composition with endless symmetrical divisions. The premise in Jay Hambridge's 1926 book is that the Dynamic Symmetry of individual elements are informed by their relationship to the entire composition. This very special proportion is guided by the square roots of integers and has a storied and historical basis in art.

It involves the use of geometric shapes and patterns in the proportion of the square root of 2 to 1 to create balance and harmony in a composition. This can be achieved by dividing a composition into a grid of squares or rectangles, and then placing elements within the grid in a way that follows the principles of dynamic symmetry. Dynamic symmetry is often used to create a sense of order and structure in a composition, and can be particularly useful for creating compositions that are harmonious and pleasing to the eye.

Explore other sizes in this same 31:22 aspect ratio:

7x10 • 12x17 • 17x24 • 19x27 • 24x34 • 29x41 • 34x48 • 36x51 • 41x58 • 46x65 • 48x68 • 51x72 • 53x75 • 58x82 • 60x85

Explore Related Products to this 22x31 Size:

• Acrylic Primed Linen: Muir™ • Santa Cruz™ • Grenoble™ • Pau™
• Acrylic Primed Cotton: Monterey™ • Carmel™ • Tahoe™ • Heavy Weight 14oz cotton • Sierra™
• Alkyd / Oil Primed Linen: Malibu™ • Vintage L21C™ • Ventura™ • Versailles™ • Isola™ • Poitiers™
• Vincent™ Pro 7/8 • Monet™ Pro 1.5

Vintage™ L22U Acrylic Primed Artfix Linen

Delightful hand-primed medium tooth linen with a medium tooth and texture.

• 100% Belgian Linen 5 oz.; Primed Weight 12 oz. per square yard
• Medium Weight, Open Weave, Medium Texture
• Double Sized and Double Primed with acid-free archival quality acrylic gesso
• Impenetrable ground prevents oil paint from leaching through and harming the canvas
• For acrylics, oils, alkyds, and water miscible oil paints
• Linen has natural oils that prevent disintegration over time.

3D™ Pro 2.5 Stretcher Bar • 1/2" Canvas Clearance

1/2" Canvas Clearance is the space between the Bar and the canvas. Generally speaking, more clearance reduces the risk of the canvas touching the wood and creating unsightly lines during painting. Our design provides the optimal clearance so as not to impact your painting, but still leaving enough wood to the maximize strength of the Stretcher Bar.

• Produces a 2.5" deep stretched canvas (Actual depth is slightly thinner)
• 1.25" wide Stretcher Bar
• All Bars have an exclusive groove on the inside perimeter of the frame to which cross braces and Diamond Corner Braces attach
• Solid Ponderosa Pine or Fir from the Pacific Northwest

Finger Jointed Wood is not meant for Stretcher Bars

Solid wood makes the most dependable Stretcher Bar, because one homogeneous wood member is going to behave similarly across the entire length of the Bar. Whereas, with finger-jointed wood is made-up of multiple pieces of wood, sometimes on the actual joint itself, presenting multiple points of failure which no one can control.

We only use Solid Wood to build our Stretcher Bars because a solid piece of wood will last indefinitely. When we speak of archival value, it's not just the paint you use and the quality of your canvas and ground, even the wood choices manufacturers add or reduce value to your final painting. The fact is, you don't want problems, and finger joints only increase that risk of the wood falling apart in the future.

The glue used to bind finger joints is a water based adhesive and when that wood is exposed to high humidity environments, particularly with exterior walls, the glue joints can give-up. As a manufacturer, Masterpiece® does its part to conserve as much wood as possible, and still provide a quality product that will out-perform any other in the marketplace.

22x31 2.5" Deep Edge Heavy Frame Offers Maximum Support!

• Drawing depicts the exact frame construction, not the proportion
• 2.5" Deep Edge K2 Heavy Stretcher Bars are precision machined with a unique double tongue-and-groove corner joint that provides rock-solid torsional rigidity that resists warping or twisting, which is an important benefit for such a deep edge canvas
• One super strong 3/4" thick keyable brace provides maximum possible support for this 22x31 frame - Brace is permanently installed in the frame, but canvas tension may be increased by tapping-in the keys or wedges that slightly expand the size of the frame
• The Stretcher Bars have an proprietary utility groove on the inside perimeter of the frame which is used to attach braces and other optional frame supports
• The Masterpiece brace feature an exclusive system that allows you to increase the tension to the middle of the canvas, where the tension is needed the most; it's so unique it earned us a patent
• To increase canvas tension: 1) remove any staples in the corners and those that retain the brace keys in the middle, 2) tap all of the expansion keys further into their respective slots, 3) tighten and re-staple the canvas in the corners

Canvas Tension is in Your Control

In dry climates or air conditioned environments, the lack of moisture in the air causes wood frames to shrink and the canvas fibers to narrow and elongate making the canvas more slack and resulting in a loss of canvas tension. In some instances, the canvas could have waves on the surface resulting in an unsightly viewing experience.

Our 3D™ Pro 2.5 professional frames provide the functionality for you to slightly expand the size of the frame in the corners and the middle of the canvas, thereby increasing canvas tension all across the surface. The difference between a loose canvas and a tight canvas is just 1/8" of an inch, so a small adjustment using our corner and brace keys makes an important difference in canvas tension.

• Helps to prevent waves that occur in a loose canvas
• Increase canvas tension by tapping-in the corner and brace keys
• True professional class canvases make it possible for you to adjust the canvas tension

Cross Braces Make it Tighter

A tightly stretched canvas on an un-braced frame overpowers the Stretcher Bars causing them to bow inward and thereby lose tension. Sometimes that bow can expose a space in picture frames.

When a canvas is stretched on a properly supported frame, the cross-braces prevent the Bars from bowing thereby achieving maximum canvas tension. To increase the canvas tension even more, simply tap the corner and brace keys further in their slots. Properly supported frames provide you with the control over the canvas tension of your canvas and painting.

Biodiversity in our Forests is the Key to Life as we know it

By using lumber from sustainably managed forests in our products, we can ensure that the forests will continue to thrive and provide valuable resources for years to come. Sustainable forestry practices help to maintain the health and biodiversity of the forest, which benefits not only the environment, but also the local communities and businesses that rely on the forest for their livelihoods.

Specially Dried and Heat Treated Lumber

Our wood is handpicked from a curated group of environmentally responsible lumber mills in the Pacific Northwest. By adhering to our precise drying and heat-treatment standards, these mills produce lumber with nearly half the moisture you'd find in common home improvement outlets or lumber yards. This meticulous process not only enhances the wood's strength—minimizing risks of cracks, splits, or bends—but also elevates its dimensional stability. Such quality, despite its premium, is paramount in creating professional canvases designed to uphold the sanctity of your cherished art throughout the years.

MuseumWrap™ Stretching Technique

With more than a half a century of American engineering, Masterpiece® designs and builds its own proprietary stretching equipment that enables us to produce the finest and most tightly-stretched canvas on the market.

• Drum-tight stretch!
• Up to 50% tighter than other methods
• Balanced tension across the surface
• Uncut folded corners make it possible to remove and re-stretch canvas on the same size frame
• Usually the corner folds are on the long sides

Since its inception in 1965, Masterpiece® has been at the forefront of crafting superior artist canvases in North America. The canvas acts as a canvas for an artist's vision, transforming mere materials into invaluable masterpieces. Elevate your artwork with the right base; after all, its longevity speaks volumes about your brand and legacy.

If you shut up truth and bury it under the ground, it will but grow. ♦ Emile Zola

Emile Zola, one of the most prominent French novelists of the 19th century, was no stranger to the battles between truth and suppression. As a key figure in the literary school of naturalism, Zola sought to portray life as it was, warts and all. His commitment to depicting reality often thrust him into the heart of societal controversies, most notably during the Dreyfus Affair, where he valiantly defended an unjustly accused man and condemned the prevailing anti-Semitic sentiments.

The essence of Zola's words ring profoundly true. Each creative endeavor we undertake is a manifestation of a truth — sometimes personal, other times universal. When external pressures or internal fears push us to stifle our artistic voice, we must remember that the essence of our message, like a seed, can thrive even in adversity. By staying true to our vision and allowing our truths to permeate our work, we contribute to a collective legacy where authenticity and resilience prevail. In Zola's wisdom, we are reminded that our responsibility is not just to showcase beauty but to ensure that truths, no matter how inconvenient, find their rightful place in the sun.

---

Celebrating the creativity in all of us, we've taken a step provide these words of wisdom and to immortalize Emile Zola through our own unique portrait. Pick up your brush and create!

Tight'n'Up™ Liquid Canvas Retensioner

While all of our Masterpiece® Pro canvases are stretched very tightly and our frames have a built-in method to increase tension, we have another method to add canvas tension. Tight'n'Up™ Liquid Canvas Retensioner (sold separately) can be sprayed on the back of a canvas to repair most canvas tension issues.

With Tight'n'Up™, you can add tension to just a small area, or a large area. Simply spray it lightly on the back and brush it into the canvas, and within seconds, your canvas becomes tighter and stays tighter. The more you use, the tighter it gets.
