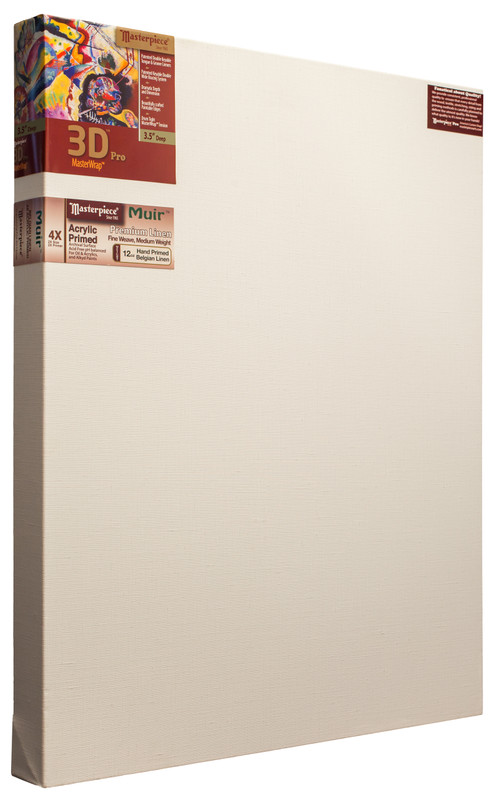

48x68 3D Pro Muir Canvas 3-1/2" #TA-4868

True Dynamic Root-2 Proportion - 48x68 Size

This 48x68 is one of our Dynamic Root-2 Rectangle Root-2 Rectangle series.

The Dynamic Root-2 rectangle is an interesting proportion based on organizing your spatial composition with endless symmetrical divisions. The premise in Jay Hambridge's 1926 book is that the Dynamic Symmetry of individual elements are informed by their relationship to the entire composition. This very special proportion is guided by the square roots of integers and has a storied and historical basis in art.

It involves the use of geometric shapes and patterns in the proportion of the square root of 2 to 1 to create balance and harmony in a composition. This can be achieved by dividing a composition into a grid of squares or rectangles, and then placing elements within the grid in a way that follows the principles of dynamic symmetry. Dynamic symmetry is often used to create a sense of order and structure in a composition, and can be particularly useful for creating compositions that are harmonious and pleasing to the eye.

Explore Related Products to this 48x68 Size:

• Acrylic Primed Linen: Vintage L22U™ • Vintage L22U™
• Acrylic Primed Cotton: Monterey™ • Carmel™ • Tahoe™ • Heavy Weight 14oz cotton • Sierra™
• Alkyd / Oil Primed Linen: Malibu™ • Vintage L21C™
• Monet™ Pro 1.5 • 3D™ Pro 2.5

Muir™ Acrylic Primed Belgian Linen

Characteristic linen type surface texture. It has a bright white tone.

• 100% Belgian Linen 5 oz.; Primed Weight 12 oz. per square yard
• Medium Weight, Open Weave, Textured Surface
• Double Sized and Double Primed with acid-free archival quality acrylic gesso
• Impenetrable ground prevents oil paint from leaching through and harming the canvas
• For acrylics, oils, alkyds, and water miscible oil paints
• Linen has natural oils that prevent disintegration over time.

3D™ Pro 3.5 Stretcher Bar • 1/2" Canvas Clearance

1/2" Canvas Clearance is the space between the Bar and the canvas. Generally speaking, more clearance reduces the risk of the canvas touching the wood and creating unsightly lines during painting. Our design provides the optimal clearance so as not to impact your painting, but still leaving enough wood to the maximize strength of the Stretcher Bar.

• Produces a 3.5" deep stretched canvas (Actual depth is slightly thinner)
• 1.25" wide Stretcher Bar
• All Bars have an exclusive groove on the inside perimeter of the frame to which cross braces and Diamond Corner Braces attach
• Solid Ponderosa Pine or Fir from the Pacific Northwest

Finger Jointed Wood is not meant for Stretcher Bars

Solid wood makes the most dependable Stretcher Bar, because one homogeneous wood member is going to behave similarly across the entire length of the Bar. Whereas, with finger-jointed wood is made-up of multiple pieces of wood, sometimes on the actual joint itself, presenting multiple points of failure which no one can control.

We only use Solid Wood to build our Stretcher Bars because a solid piece of wood will last indefinitely. When we speak of archival value, it's not just the paint you use and the quality of your canvas and ground, even the wood choices manufacturers add or reduce value to your final painting. The fact is, you don't want problems, and finger joints only increase that risk of the wood falling apart in the future.

The glue used to bind finger joints is a water based adhesive and when that wood is exposed to high humidity environments, particularly with exterior walls, the glue joints can give-up. As a manufacturer, Masterpiece® does its part to conserve as much wood as possible, and still provide a quality product that will out-perform any other in the marketplace.

48x68 3.5" Deep Edge Heavy Frame Offers Maximum Support!

• Drawing depicts the exact frame construction, not the proportion
• 3.5" Deep Edge K3 Heavy Stretcher Bars are precision machined with a unique double tongue-and-groove corner joint that provides rock-solid torsional rigidity that resists warping or twisting, which is an important benefit for such a deep edge canvas
• Each corner has a diagonal oriented Diamond Brace that interlocks with the Stretcher Bars and superior support and rigidity to help keep the frame square
• Two super strong 3/4" thick keyable braces and two cross braces (all 3.25" wide) provide the maximum possible support for this 48x68 frame; Cross Braces are permanently installed in the frame, but canvas tension may be increased by tapping-in the keys or wedges that slightly expand the size of the frame
• The Stretcher Bars have an proprietary utility groove on the inside perimeter of the frame which is used to attach braces and other optional frame supports
• The Masterpiece braces feature an exclusive system that allows you to increase the tension to the middle of the frame, where the tension is needed the most; it's so unique it earned us a patent
• Our state-of-the-art cross braces attach the ends of the cross braces into the (grooved) sides of the braces, which creates a superior and robust system of interlocking cross braces
• To increase canvas tension: 1) remove any staples in the corners and those that retain the brace keys in the middle, 2) tap all of the expansion keys further into their respective slots, 3) tighten and re-staple the canvas in the corners

Canvas Tension is in Your Control

In dry climates or air conditioned environments, the lack of moisture in the air causes wood frames to shrink and the canvas fibers to narrow and elongate making the canvas more slack and resulting in a loss of canvas tension. In some instances, the canvas could have waves on the surface resulting in an unsightly viewing experience.

Our 3D™ Pro 3.5 professional frames provide the functionality for you to slightly expand the size of the frame in the corners and the middle of the canvas, thereby increasing canvas tension all across the surface. The difference between a loose canvas and a tight canvas is just 1/8" of an inch, so a small adjustment using our corner and brace keys makes an important difference in canvas tension.

• Helps to prevent waves that occur in a loose canvas
• Increase canvas tension by tapping-in the corner and brace keys
• True professional class canvases make it possible for you to adjust the canvas tension

Cross Braces Make it Tighter

A tightly stretched canvas on an un-braced frame overpowers the Stretcher Bars causing them to bow inward and thereby lose tension. Sometimes that bow can expose a space in picture frames.

When a canvas is stretched on a properly supported frame, the cross-braces prevent the Bars from bowing thereby achieving maximum canvas tension. To increase the canvas tension even more, simply tap the corner and brace keys further in their slots. Properly supported frames provide you with the control over the canvas tension of your canvas and painting.

Forests need People, and People Need Forests

Using lumber from sustainably managed forests is a way to support the health and well-being of our planet and its inhabitants. By choosing products made with sustainably sourced lumber, we can help to protect the environment, support local communities, and ensure a sustainable future for generations to come.

Specially Dried and Heat Treated Lumber

Our wood is handpicked from a curated group of environmentally responsible lumber mills in the Pacific Northwest. By adhering to our precise drying and heat-treatment standards, these mills produce lumber with nearly half the moisture you'd find in common home improvement outlets or lumber yards. This meticulous process not only enhances the wood's strength—minimizing risks of cracks, splits, or bends—but also elevates its dimensional stability. Such quality, despite its premium, is paramount in creating professional canvases designed to uphold the sanctity of your cherished art throughout the years.

MuseumWrap™ Stretching Technique

With more than a half a century of American engineering, Masterpiece® designs and builds its own proprietary stretching equipment that enables us to produce the finest and most tightly-stretched canvas on the market.

• Drum-tight stretch!
• Up to 50% tighter than other methods
• Balanced tension across the surface
• Uncut folded corners make it possible to remove and re-stretch canvas on the same size frame
• Usually the corner folds are on the long sides

Requires Truck Delivery

This size will be shipped on an LTL freight truck, which is safe and reliable. Our shipping cost estimator cannot possibly contemplate all the cost factors with truck shipments, so once you place your order and before we do anything, we will review and inform you if your actual cost is higher or lower. Ordering larger quantities usually does not increase the freight cost, so you get a better value by ordering larger quantities.

Conditions that impact cost are extra large products, or if your delivery address is out-of-the-way, or in a school, university, church, hotel, shopping mall, or farm. Shipping to a business address lowers cost. Contact us with any questions.

The trucking company will contact you by phone, and arrange a 4 hour window for delivery, so be sure to pick-up strange numbers during the time of delivery. Someone must be present to receive and sign for this delivery; they will not just leave it at your door. We rarely have issues, but if you notice a problem, please document it on the delivery receipt before you sign it, and take photos.

3D™ Pro 3.5 Professional canvases are built one-by-one and stretched using our proprietary stretching process called, MuseumWrap™, which relies on in-house custom-built pneumatic machinery that delivers consistently drum-tight stretched canvas, balanced tension across the canvas surface, neatly folded uncut corners, and paintable edges. It is the absolute best way to stretch a canvas.

My painting carries with it the message of pain. ♦ Frida Kahlo

Frida Kahlo's life was a vivid tableau of adversity, resilience, and raw emotion. Physical pain, due to her tragic accident, and emotional turbulence, arising from her tumultuous personal relationships, constantly shadowed her. Yet, instead of letting these challenges overcome her spirit, Kahlo channelled them into her art, making each canvas a testament to her trials. For artists, we find a kindred spirit in Kahlo. We see that art can be a vessel to contain our sufferings, translating our deepest sorrows into visual stories that resonate with others.

Such honest portrayals, laden with genuine emotion, are what make artworks immortal. As Kahlo laid bare her pain on the canvas, we are reminded of the transformative power of artistry. Through creation, we not only immortalize our experiences but find catharsis, offering both ourselves and our audience a means to navigate the labyrinth of human emotions and find solace.

---

We curated this insightful quote by Frida Kahlo, and our interpretation thereof; plus we made this portrait in the spirit of creativity. Time to create your own expression!

Tight'n'Up™ Liquid Canvas Retensioner

While all of our Masterpiece® Pro canvases are stretched very tightly and our frames have a built-in method to increase tension, we have another method to add canvas tension. Tight'n'Up™ Liquid Canvas Retensioner (sold separately) can be sprayed on the back of a canvas to repair most canvas tension issues.

With Tight'n'Up™, you can add tension to just a small area, or a large area. Simply spray it lightly on the back and brush it into the canvas, and within seconds, your canvas becomes tighter and stays tighter. The more you use, the tighter it gets.
