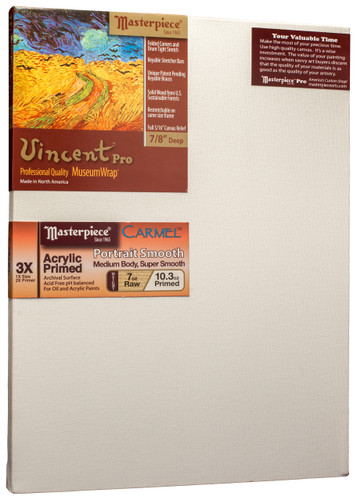

17x38 Vincent Pro Mandalay Canvas 7/8 Inch Deep #VMA-1738

True Dynamic Root-5 Proportion - 17x38 Size

This 17x38 is one of our Dynamic Root-5 Rectangle Root-5 Rectangle series.

The Dynamic Root-5 rectangle is an inspiring proportion based on organizing your spatial composition with endless symmetrical divisions. The premise in Jay Hambridge's 1926 book is that the Dynamic Symmetry of individual elements are informed by their relationship to the entire composition. This very special proportion is guided by the square roots of integers and has a storied and historical basis in art.

It involves the use of geometric shapes and patterns in the proportion of the square root of 5 to 1 to create balance and harmony in a composition. This can be achieved by dividing a composition into a grid of squares or rectangles, and then placing elements within the grid in a way that follows the principles of dynamic symmetry. Dynamic symmetry is often used to create a sense of order and structure in a composition, and can be particularly useful for creating compositions that are harmonious and pleasing to the eye.

Explore other sizes in this same 38:17 aspect ratio:

4x9 • 8x18 • 9x20 • 13x29 • 21x47 • 25x56 • 26x58

Explore Related Products to this 17x38 Size:

• Raw Unprimed Linen: Mono Lake™ • Torrey Pines™
• Raw Unprimed Cotton: Raw No 12
• Acrylic / Oil Primed Linen: Muir™ • Vintage L22U™ • Santa Cruz™ • Saint-Cloud™ • Pau™ • Malibu™ • Vintage L21C™ • Ventura™ • Versailles™
• Acrylic Primed Cotton: Monterey™ • Carmel™ • Tahoe™ • Heavy Weight 14oz cotton • Sierra™
• Monet™ Pro 1.5 • 3D™ Pro 2.5

Raw Mandalay™ Belgian Linen 11.6 oz Unprimed

Very heavy weight linen and very tightly woven. Take control of your art by preparing your own ground on Belgian Linen canvas. Use bare expanses of canvas as part of the painting or simply create the ground exactly ask you like.

• 100% Belgian Linen 11.6 oz per square yard
• Very Heavy Weight, Tight Weave, Coarse Texture
• Raw fabric blocks 95% of the light, which indicates how tight is the weave
• Warp and Weft: 31x33 yarns per square inch
• Linen has natural oils that prevent disintegration over time

17x38 Vincent Pro Frame Kit Extra Heavy Frame Provides Maximum Support

• Photo displays the exact frame construction, not the proportion
• Precision machined medium duty keyable tongue-and-groove Stretcher Bars
• Two super strong 1/2" thick keyable cross braces (3.25" wide) provide the maximum possible support for this 17x38 frame - Cross Braces may be removed and reinserted at any time
• An exclusive slot is milled on the inside perimeter of all of the Stretcher Bars to which the Braces and the expansion wedges attach
• Patented keyable cross braces allow the frame to be tensioned in the middle of the canvas, where the tension needed the most
• Cross braces firmly attached with hardware at the intersection point for maximum support and rigidity
• To increase canvas tension: 1) remove any staples in the corners and those that retain the brace keys in the middle, 2) tap all of the expansion keys further into their respective slots, 3) tighten and re-staple the canvas in the corners

Vincent™ Pro 7/8" Deep Bar • 5/16" Canvas Clearance

5/16" Canvas Clearance is the space between the Bar and the canvas. Generally speaking, more clearance reduces the risk of the canvas touching the wood and creating unsightly lines during painting. Our design provides the optimal clearance so as not to impact your painting, but still leaving enough wood to the maximize strength of the Stretched Canvas Frame.

• Stretcher Bar Profile produces a 7/8" deep stretched canvas
• 1.5" wide Stretcher Bar
• Frames with a dimension of 16" and up have a groove machined in the center inside perimeter to which cross braces attach
• Solid Ponderosa Pine or Fir from the Pacific Northwest

No Finger Joints!

Solid Wood is far superior to finger jointed wood, which is many small pieces glued together, each with varying grain densities that absorb and shed moisture at varying rates, expanding and contracting non-uniformly as environmental conditions change, and causing the wood to bow and the finger joints to eventually fail.

A single homogeneous kiln-dried solid wood Stretcher Bar outperforms and outlasts a finger jointed Bar whose sole purpose is to save the manufacturer cost, not contribute to the archival value of artwork intended to last a millennium. As a manufacturer, Masterpiece® does its part to conserve as much wood as possible, and still provide a quality product that will out-perform any other in the marketplace.

Cross Braces Make it Tighter

A tightly stretched canvas on an un-braced frame overpowers the Stretcher Bars causing them to bow inward and thereby lose tension. Sometimes that bow can expose a space in picture frames.

When a canvas is stretched on a properly supported frame, the cross-braces prevent the Bars from bowing thereby achieving maximum canvas tension. To increase the canvas tension even more, simply tap the corner and brace keys further in their slots. Properly supported frames provide you with the control over the canvas tension of your canvas and painting.

Forests need People, and People Need Forests

Using lumber from sustainably managed forests is a way to support the health and well-being of our planet and its inhabitants. By choosing products made with sustainably sourced lumber, we can help to protect the environment, support local communities, and ensure a sustainable future for generations to come.

Specially Dried and Heat Treated Lumber

We source our wood from a select group of top-tier environmentally conscious lumber mills in the Pacific Northwest. These mills specially dry and heat-treat the lumber to our specifications, resulting in about half the moisture content compared to wood from typical home improvement centers or lumber yards. This process makes the wood stronger, reducing the likelihood of cracking, splitting, or warping. While the wood we use comes at a higher cost, it ensures a more dimensionally stable end product. This stability is crucial for crafting fine professional canvases that support your invaluable art over time.

Canvas Tension is in Your Control

In dry climates or air conditioned environments, the lack of moisture in the air causes wood frames to shrink and the canvas fibers to narrow and elongate making the canvas more slack and resulting in a loss of canvas tension. In some instances, the canvas could have waves on the surface resulting in an unsightly viewing experience.

Our Vincent™ Pro professional frames provide the functionality for you to slightly expand the size of the frame in the corners and the middle of the canvas, thereby increasing canvas tension all across the surface. The difference between a loose canvas and a tight canvas is just 1/8" of an inch, so a small adjustment using our corner and brace keys makes an important difference in canvas tension.

• Helps to prevent waves that occur in a loose canvas
• Increase canvas tension by tapping-in the corner and brace keys
• True professional class canvases make it possible for you to adjust the canvas tension

MuseumWrap™ Stretching Technique

With more than a half a century of American engineering, Masterpiece® designs and builds its own proprietary stretching equipment that enables us to produce the finest and most tightly-stretched canvas on the market.

• Drum-tight stretch!
• Up to 50% tighter than other methods
• Balanced tension across the surface
• Uncut folded corners make it possible to remove and re-stretch canvas on the same size frame
• Usually the corner folds are on the long sides

With deep family ties and a legacy spanning since 1965 in California, Masterpiece® has been the epitome of unmatched quality in Stretcher Bars across North America. Our commitment to pioneering excellence has crowned us as the forerunners in the world of professional fine-art canvases. Bolstered by our patented innovations, our products exude a caliber that's in a league of its own. One touch, and the unparalleled quality becomes palpable, leaving an indelible impression on your clients and all future admirers of your art.
